Introduction to Transformers and why you should care

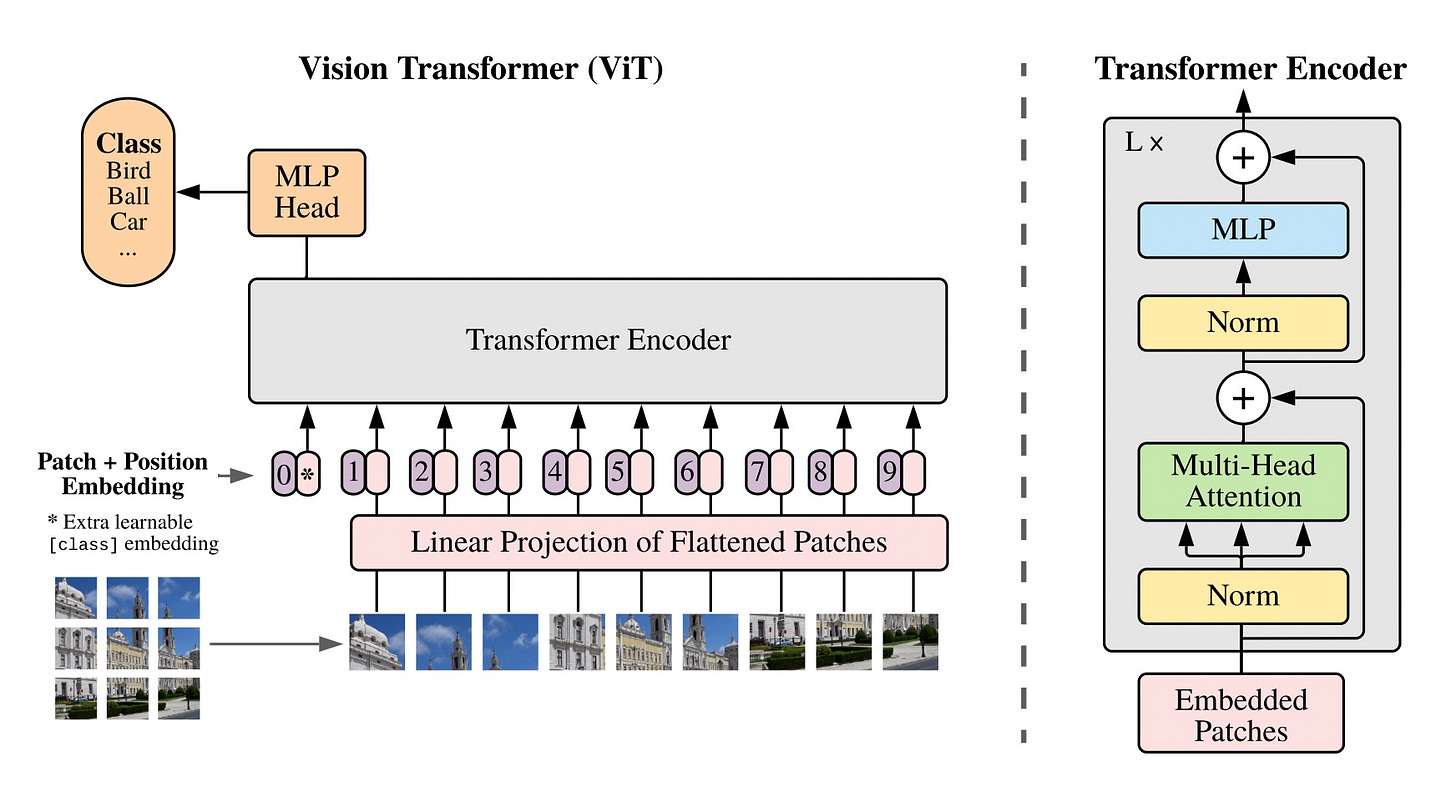

The Transformer is a neural network architecture first published in a 2017 paper titled Attention Is All You Need by researchers at Google. Transformers learn context by tracking relationships in sequential data using a technique called attention. Transformers are replacing CNN’s and RNN’s in many applications and have come to dominate the field of natural language processing in only a few years. Transformers were successfully applied to imagery in the 2020 paper An Image is Worth 16x16 Words: Transformers for Image Recognition at Scale, again by researchers at Google. Transformers applied to vision are commonly referred to as Vision Transformers, or ViT. I will not go into technical details here since those are covered in the paper and elsewhere, but the first figure from the paper is worth reproducing:
We can see that there are absolutely no convolutional layers, and the authors note that the ViT ‘has much less image-specific inductive bias than CNNs’, by which they mean that in CNN's the use of kernels bakes in the notion that image pixels are locally correlated and their correlation maps are translation-invariant, whilst a ViT must learn this. The authors suggest this is why ViT require larger data volumes to achieve comparable levels of performance to CNN's. They find that a ViT trained from scratch on ImageNet (1M images) under-performs a CNN. However on training with a significantly larger data volume (300M images), the ViT outperforms the CNN owing to its ability to capture greater context. Note that in practice it is typical to fine tune a ViT that has been pre-trained, just as we usually do with a CNN.
Transformers in remote sensing
Recently I have noticed greater numbers of remote sensing publications using Transformers/ViT. I became curious about the level of interest in Transformers in the remote sensing community and a Tweet about this got some interesting responses:
To paraphrase the main questions asked:
Do Transformers have the best performance?
Do they require more training data?
Are they harder to train?
Can they be used for classification/segmentation/object detection?
I have subsequently come to appreciate there are not definitive answers to these questions, and issues such as performance/dataset size/training complexity are all coupled. Nevertheless I attempt to answer each of these in turn below.
Performance

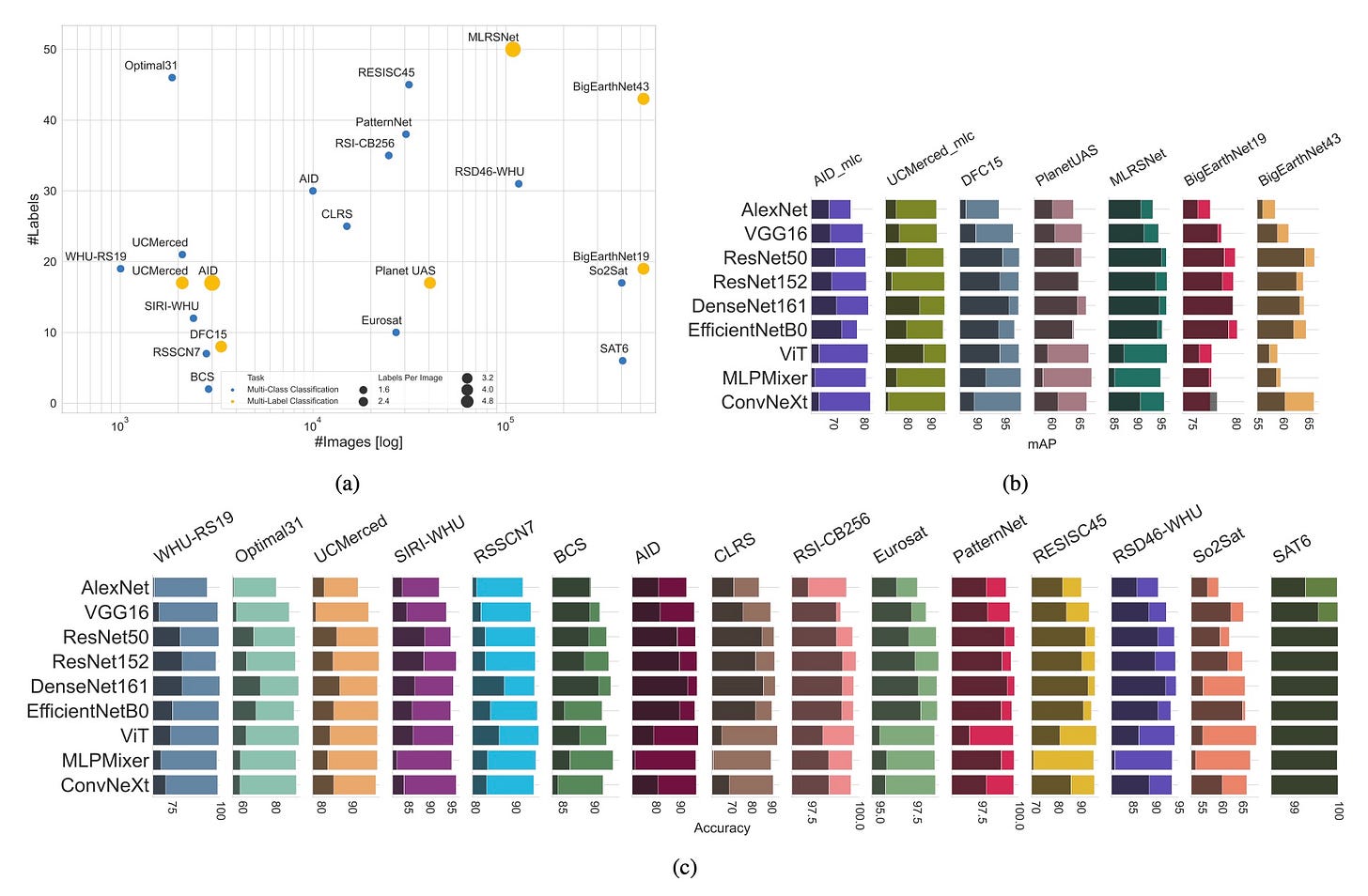

To begin addressing these questions I will first reference the 2022 paper Current Trends in Deep Learning for Earth Observation: An Open-source Benchmark Arena for Image Classification. This paper compares the performance of vision Transformers (ViT) with eight other neural network architectures on the task of classification. Figure 1 from that paper is shown below:
This paper provides a useful overview of multiple classification datasets, shown in (a) above. The datasets range considerably in number of images and classes. Model performance is compared on (b) multi-label and (c) multi-class classification tasks, where multi-class reports accuracy on the target class, whilst multi-label reports the mean average precision (mAP) across labels on the image. The darker shaded bars are performance when a model is trained from scratch, and the lighter shading bars are performance when the model is pre-trained on the ImageNet-1K dataset. We immediately observe that pre-training almost always improves model performance, which is a very useful takeaway. Amongst the models, ViT and DenseNet are the best performers, although ViT actually performs worst on the largest dataset, BigEarthNet. It is also interesting that for many of the datasets, a ResNet achieves comparable performance.
Training data requirements
I think it is a fair assumption that the vast majority of remote sensing users will be using pre-trained models, so I will not discuss any further the requirements for training a ViT from scratch. Referring back to Figure 1, it is clear there is not a simple rule of thumb that large data volumes will guarantee better performance with a ViT. A much more likely scenario in practice is that a user has a relatively limited training dataset, and has already trained a CNN and wants to know if it is worth training a ViT. I have actually been unable to find a definitive paper focussing on this scenario, so if you find one please mention in the comments section. There are papers that propose innovations to reduce the training dataset size requirements, for example using self-supervision.
Training difficulty
If we again consider only fine tuning, is training a ViT more difficult than a CNN? To gain first hand experience I worked through the tutorial Fine-Tune ViT for Image Classification with Huggingface Transformers which I then modified to use the Eurosat remote sensing dataset. Training can be completed on a free Google Colab instance and yields a model with high classification accuracy on this admittedly very simple dataset. The experience of fine tuning a ViT appears to be similar to fine tuning a CNN, but if you have more experience of training ViT's please let me know in the comments.
Use cases
Vision Transformers clearly excel at classification tasks, but what about other use cases? The references listed below show that Transformers have been applied to a wide range of tasks including segmentation, object detection, change detection and others:
Self-supervised Vision Transformers for Land-cover Segmentation and Classification
Using Vision Transformers for enhanced wildfire detection in satellite images
Building Extraction from Remote Sensing Images with Sparse Token Transformers
Transformer with Transfer CNN for Remote-Sensing-Image Object Detection
Point Transformer for Shape Classification and Retrieval of Urban Roof Point Clouds
Multimodal Fusion Transformer for Remote Sensing Image Classification
Closing thoughts
Transformers have achieved state of the art performance on remote sensing classification datasets and look set to make an impact on other common tasks such as segmentation and object detection. I expect that CNN based networks will continue to be the workhorses of remote sensing applications owing to their proven track record and vast documentation. However given the rapid pace of innovation in the deep learning domain I would not be surprised to see Transformers or hybrid Transformer/CNN approaches steadily making their way into applications.
Further reading
Pytorch implementation of a ViT: vit-pytorch
ArXiv paper: Formal Algorithms for Transformers
Terminology
CNN: convolutional neural network
RNN: recurrent neural network
ViT: vision transformer
